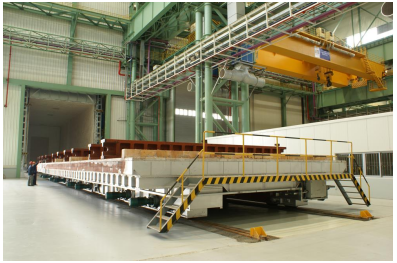

Trolley type gas stove
Unit:
Size:
Price:
Product description
Trolley gas furnace is suitable for all kinds of forgings, castings, welding parts, large pressure vessels and other heat treatment process. Advanced furnace structure equipped with high efficiency, energy saving and environmental protection combustion control system can effectively improve the workpiece heating quality and reduce operating energy consumption.
Technical parameter
? Furnace structure: furnace body length variable capacity, front and rear furnace door through type, side sliding door type
? Burner type: Ultra-low NOX impulse total regenerative burner/central heat exchange burner
? Maximum temperature: 1200℃
? Temperature uniformity: ≤±10℃
? Heating speed: 20-150℃/h
? Loading capacity: 30T-500T
